ISUZU water trucks are mainly used for emergency support and municipal water supply
Your trusted water supply solution
Applications

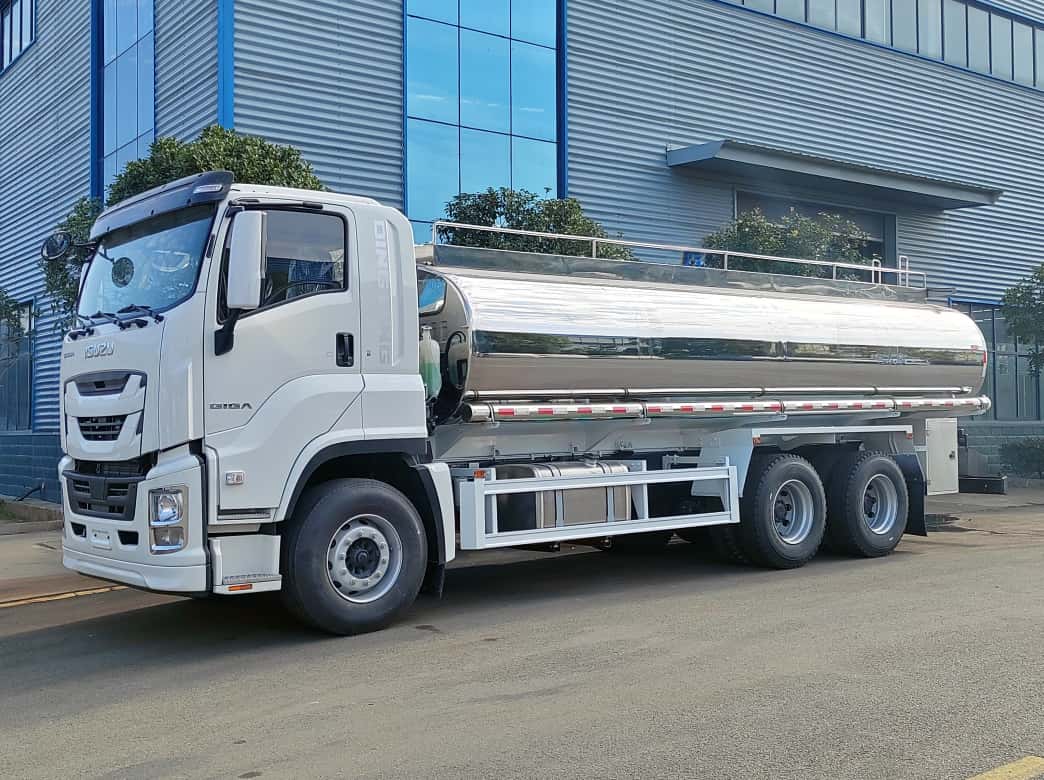

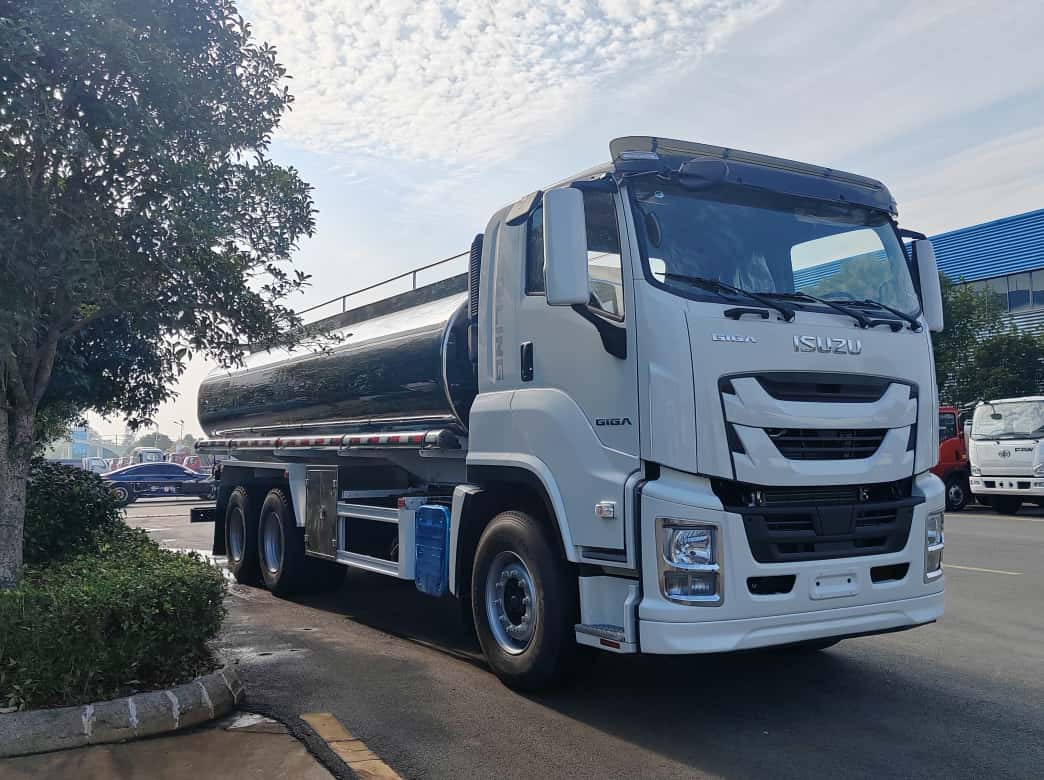

This Isuzu 20 cubic-meter water supply truck is mainly used for scenarios such as fire-fighting water supply, emergency water supply for people's livelihood, landscaping irrigation, emergency cooling, road sprinkling, forest water supply, ultra-high pressure water supply, and long-distance water transportation.
- Landscaping: greening irrigation, emergency water supply
- Fire water supply: Continuous water replenishment and remote water supply for fire engines
- People's Livelihood Water Supply: Delivering drinking water to disaster-stricken areas, resettlement sites and hospitals
- Special water supply: long-distance water delivery for large-scale industrial fires
Why choose our ISUZU water supply truck?
- Legendary Isuzu Chassis：Renowned for reliability, durability and fuel efficiency. Stable performance even under long hours of heavy-duty operation, low failure rate, ensuring high uptime for emergency missions.
- Large-Capacity Water Tank：Available in 20,000L capacity. Made of high-quality carbon steel or food-grade 304 stainless steel, anti-corrosion, easy cleaning, safe for drinking water transportation. Built-in baffles effectively reduce water sloshing and improve driving stability.
- High-Efficiency Water Pump System：Powerful self-priming fire pump with large flow rate and high lift. Fast water absorption from rivers, ponds or fire hydrants. Supports long-distance and high-rise water supply, ideal for firefighting, emergency rescue and municipal use.
- Flexible & Multifunctional：Supports water storage, transportation, pressure spraying, self-draining and fast water distribution. Equipped with standard fire hose connectors, easy operation, high compatibility.
Comprehensive Safety Protection
- Stable chassis & braking system：Adopts high-strength Isuzu original chassis, with reliable braking performance, ABS and stable suspension, effectively preventing rollover and ensuring driving safety under full load.
- Anti-corrosion & reinforced structure：Tank and pipeline use anti-corrosion materials, with firm fixing brackets, preventing structural damage and leakage in complex road conditions.
- Reliable pipeline & valve safety：High-pressure resistant pipelines, quick connectors and reliable valves avoid burst and leakage, ensuring stable and safe water supply
- Clear instrument & warning system：Real-time monitoring of water pressure, liquid level and vehicle status, with fault and low-level warnings to reduce operational risks.

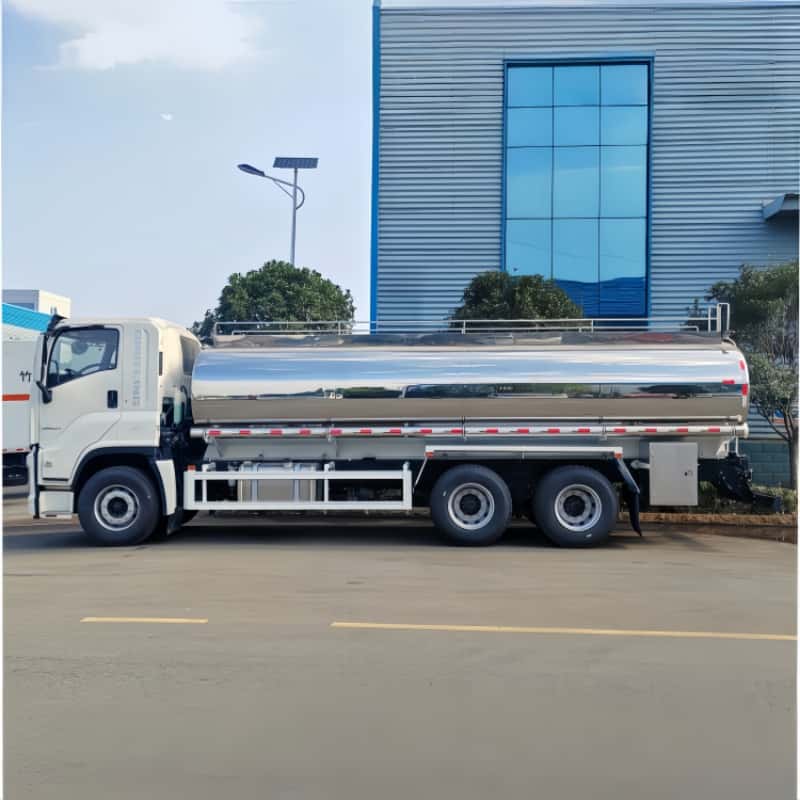

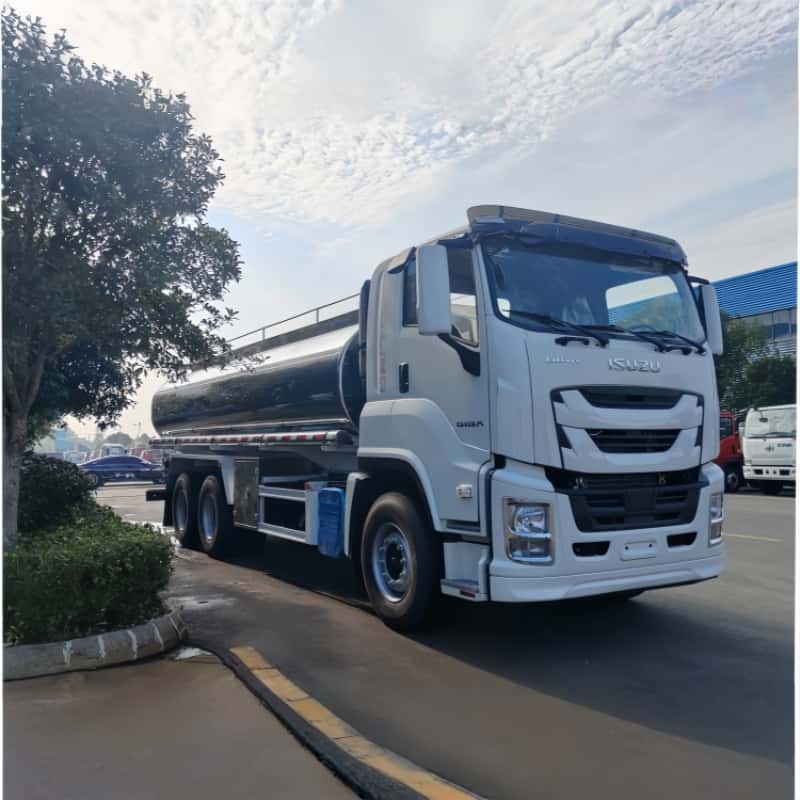

Technical Specifications
|
Tank configuration
|
| Parameter Category |
Parameter Name |
Specification & Value |
| Chassis |
Chassis Make |
ISUZU GIGA 6x4 |
| |
Engine |
ISUZU 6UZ1 Ero 3/4/5 |
| |
Transmission |
8/12-speed Manual |
| |
Wheelbase |
4600+1300 mm |
| Tank Structure |
Material of the tank body |
5mm Carbon Steel (Q235B) / 304 Stainless Steel (optional) |
| |
Material thickness |
5mm (main body) / 6mm (dish heads) |
| |
Tank size (L×W×H) |
7200×2400×1600mm |
| |
Tank volume |
20000L (20 m³) |
| |
Anti-wave board |
3-4 sets of vertical anti-slosh baffles |
| |
Tank body welding |
Full-automatic CO₂ gas shielded welding, 100% leak-tested |
| |

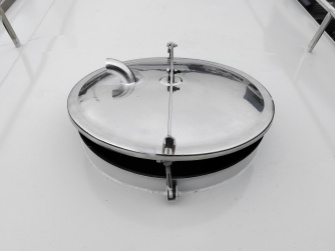

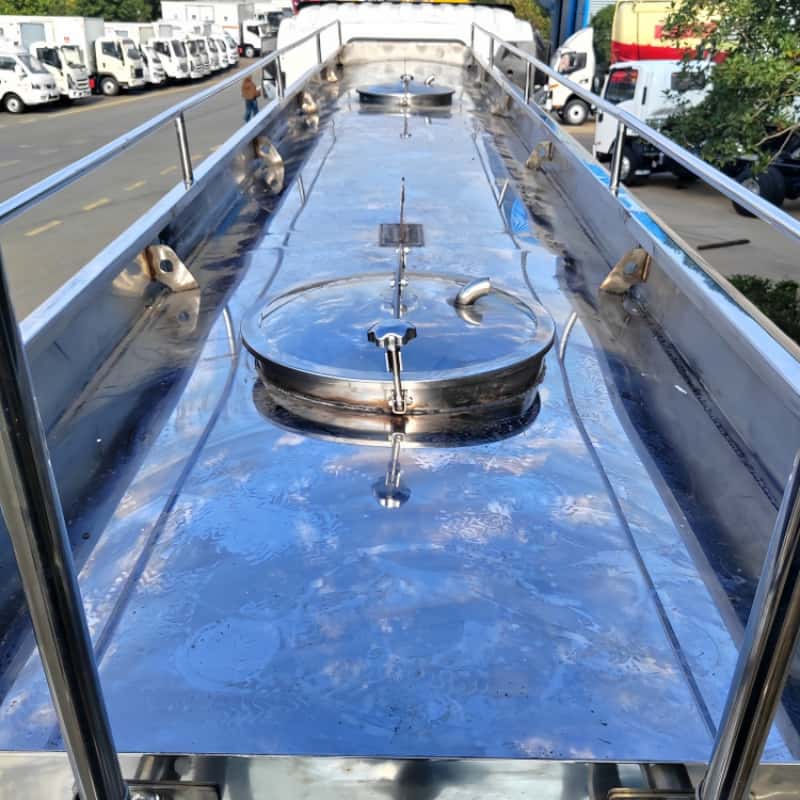

Can mouth (Manhole) |
2 × 600mm stainless steel manhole cover (with safety lock) |

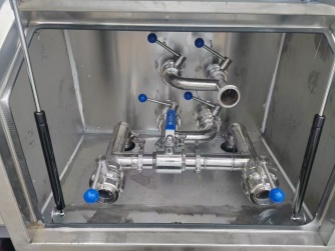

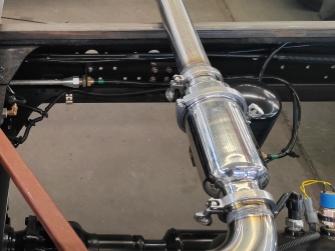

| Pipeline System |
Valve material |
304 Stainless Steel |
| |
Pipe material |
304 Stainless Steel / Galvanized Steel |
| |
Valve diameter |
DN80 (3") |
| |

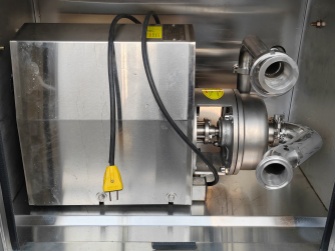

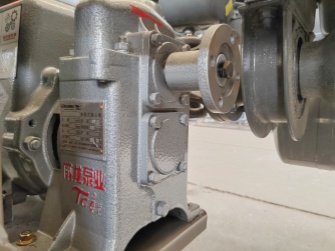

Water pump - vehicle-mounted pump |
80 m³/h Centrifugal Self-Priming Pump |
| |
Suction pipe |
DN100 (4") suction hose (6m length) |
| |
Filter |
Y-type strainer (stainless steel) |
| Accessories |
Cannon barrel (Water cannon) |
Adjustable high-pressure cannon (spray 40-50m) |
| |
Climb the fence |
Aluminum alloy anti-slip guardrail |
| |

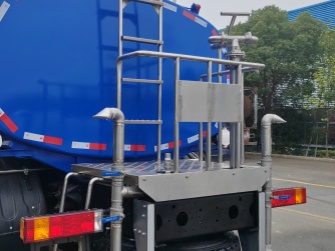

Back ladder |
Stainless steel access ladder |
| Safety |
Mudguard |
Galvanized steel |
| |
Side protection |
Q235 steel side bars |
|
Video
Drawing
Main Components
Reliable Warranty & Global Support
- 12-month warranty: The entire vehicle is covered by warranty (excluding vulnerable parts), giving you complete peace of mind.
- On-demand technical support: 7/24-hour technical response, providing immediate solutions for various malfunctions.
- Free operation training: On-site or remote training covering operating systems, safety regulations and water pump operation.
- Global parts supply: Rapid delivery of vulnerable spare parts to minimize equipment downtime.
- Multi-brand equipment support: Professional diagnostic guidance is also available even if you have an existing fleet of other brand equipment.
Frequently Asked Questions
Q: How long is the delivery lead time for a customized Isuzu water supply truck?
A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.
Q: Does the truck come with a certification for international standards?
A: Yes, our aerial work platforms comply with ISO and CE standards, and the Isuzu chassis meets global quality benchmarks.
Q: Can this truck operate in narrow city streets?
A: Absolutely. The Isuzu 6x4 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.
Q: What are your shipping conditions?
A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.
Q: Can you fully customize according to my requirements?
A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
