Name: FAW 6×4 65m Synchronous Telescopic Aerial Work Truck
Availability: InStock

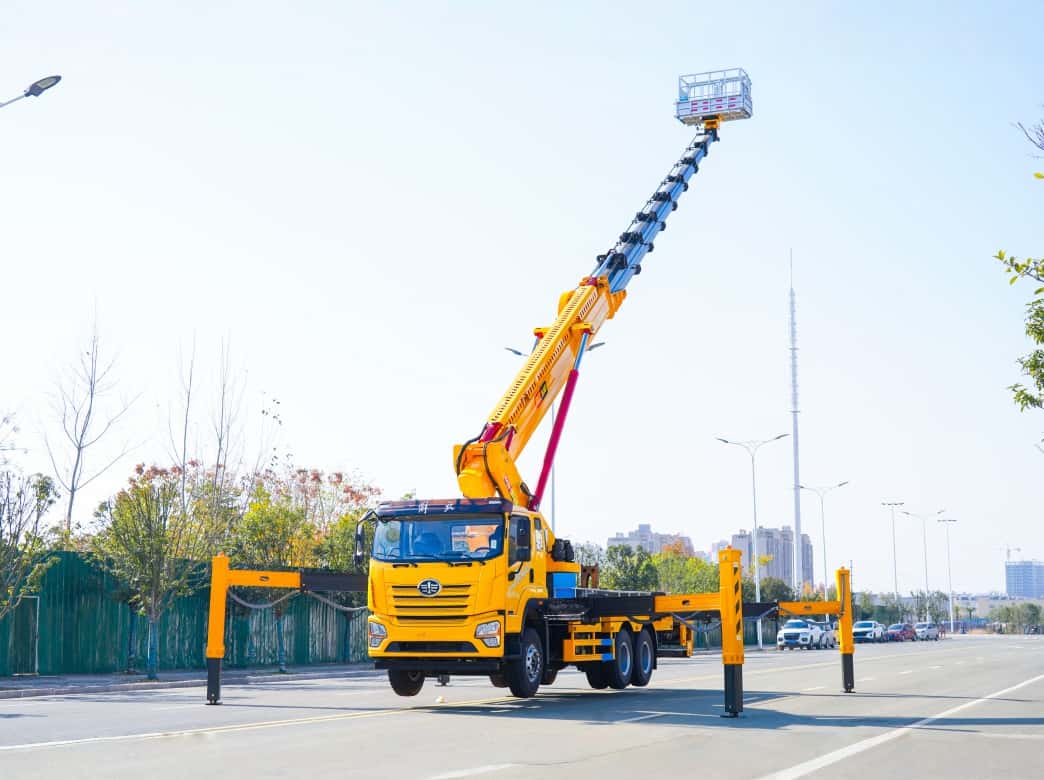

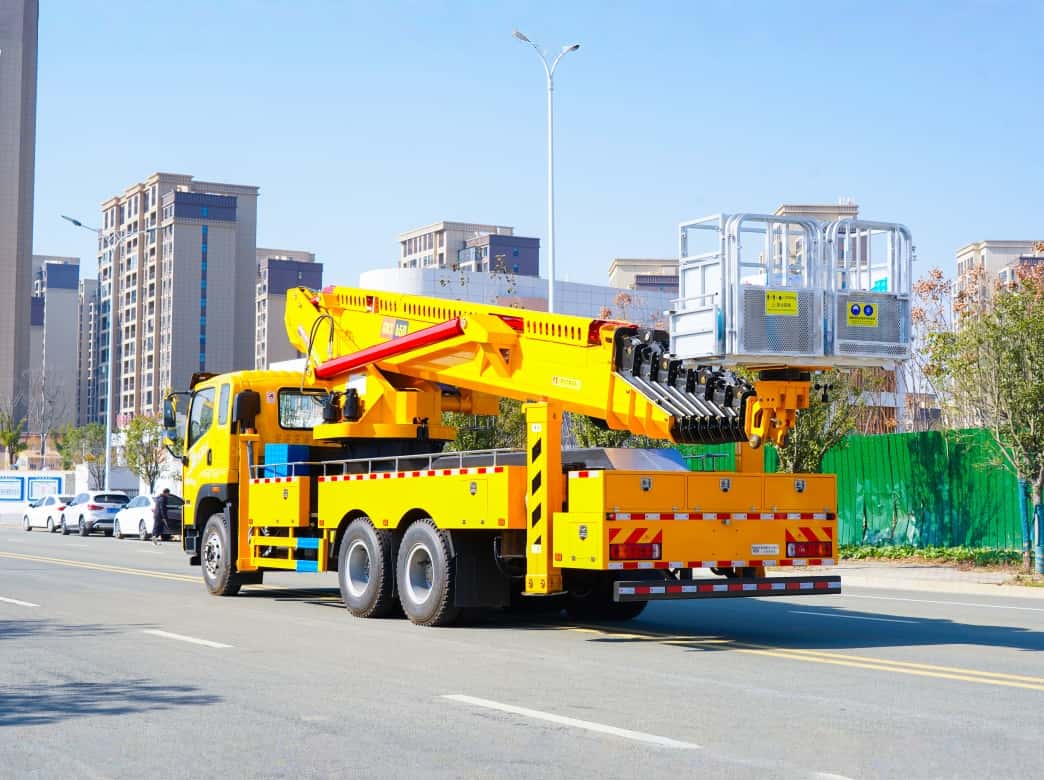

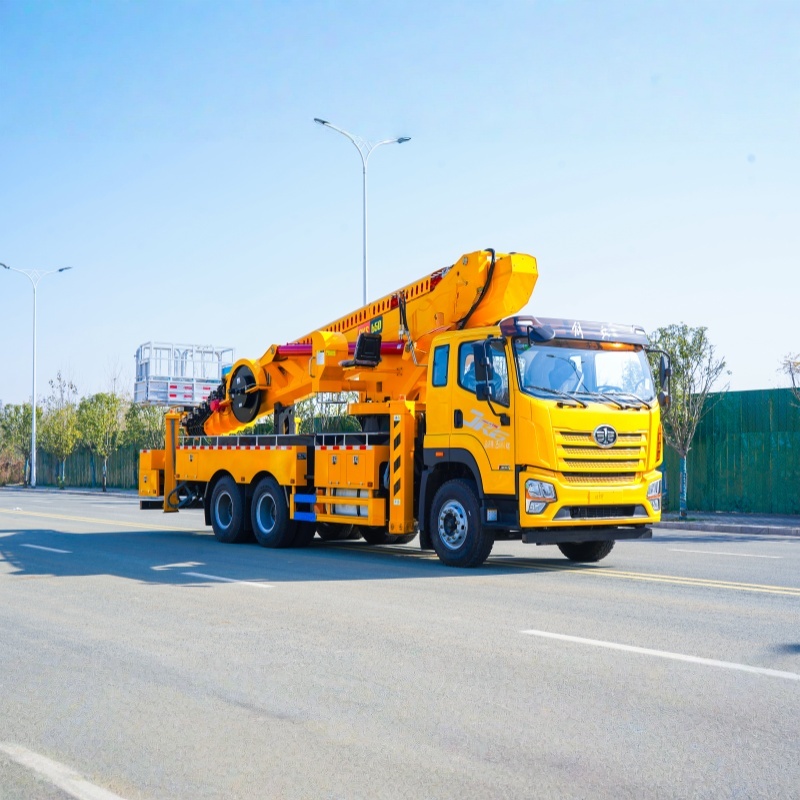

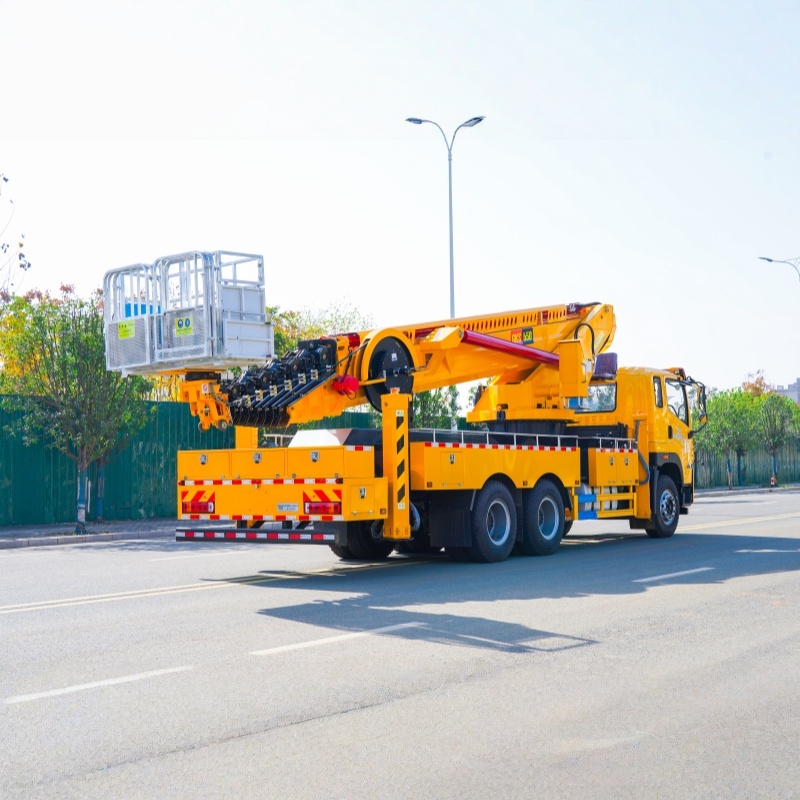

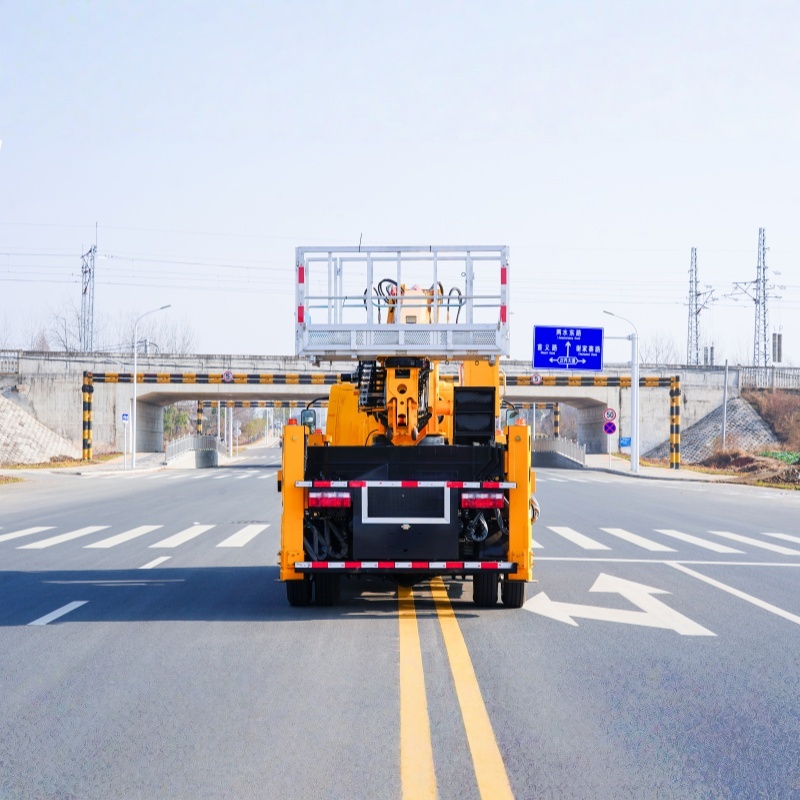

This aerial work truck adopts FAW 6×4 chassis, equipped with a 300HP Yuchai engine and 8-section 16-sided synchronous telescopic boom. It features stable lifting, long reach, strong power and reliable performance.Powerful engine adapts to harsh working conditions; 8-section synchronous boom ensures high stability and long working radius; 6×4 chassis offers strong carrying capacity and good passability.Suitable for high-rise building construction, bridge inspection, curtain wall installation, street lamp maintenance, stadium maintenance, municipal engineering and aerial equipment installation.

Highlights:

✅ Max Working Height:65 meters

✅ Chassis: Original FAW 6x4(left/right hand drive available)

✅ Rotation: 360° continuous slewing

✅ Safety: Emergency stop & outrigger interlock system

Inquire Now

FAW 65m Telescopic Boom Aerial Work Platform for Maintenance & Construction

Your Realiable High-Altitude Access Solutions

ISUZU 28m Telescopic Boom Aerial Work Platform

Applications

This FAW 65-meter platform aerial work truck has a spacious operation space and can be built by many people at the same time. It is widely used in high-altitude comprehensive operations such as municipal street lamp power maintenance, exterior wall curtain wall maintenance, garden high branch pruning, factory steel structure elevated maintenance and traffic sign installation.

Municipal Maintenance: FAW 65-meter platform aerial work truck has a spacious operation space, and multiple people can work at the same time
Utility & Power: High-voltage cable maintenance.
Building Facades: Window cleaning and external wall painting.
Telecommunications: 5G base station maintenance and antenna adjustment.

Why Choose Our 65m FAW Aerial Work Truck

Small in size & Flexible: This 65m FAW aerial work truck with cargo box integrates high-altitude operation and material transportation, ideal for municipal & maintenance projects.
Leading Reach: Massive 65m working height and 35m outreach, powered by a fast 9-section synchronous boom.
Smart Remote Control: Wireless operation up to 200m eliminates blind spots and keeps operators out of extreme weather.
High-Efficiency Movements: Supports simultaneous rotation, luffing, and extension to slash task completion time.
Smooth & Stable: Buffer control and imported proportional valves ensure jerk-free, precision movement.
Premium Durability: High-strength steel structure and global-brand components for long-term reliability.
Ergonomic Comfort: Intuitive icon-based controls and fatigue-reducing seating for safer, longer operations.

Comprehensive Safety Protection

Emergency Power Source: Even if the chassis engine stalls, the emergency pump can lower the bucket to the ground.
Outrigger Interlock: If the outriggers are not properly extended, the operator cannot work on the upper platform; if the upper platform is not retracted, the outriggers cannot be retracted.
Automatic Leveling: The bucket remains level regardless of boom angle changes.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	11600
	Width	mm	2550
	Height	mm	3900
	Rated Passengers	Persons	3
	Wheelbase	mm	4350+1350
	Tires	/	11.00R20
Main Performance	Platform Rated Load	kg	200
	Retracted Boom Length	m	41
	Fully Extended Boom Length	m	50
	Max. Working Height	m	65
	Working Radius at Max. Height	m	11.8
	Max. Working Radius	m	26/32
	Max. Height at Max. Radius	m	65
	Outrigger Span (Front & Rear)	mm	1410
	Outrigger Span (Left & Right)	mm	3180
	Turntable Rotation	°	±360° continuous
	Basket Rotation	°	±360° continuous

Video

Drawing

Main Components

Cradle console
Control the extension, lifting and rotation of the boom
Electric control operating console
Integrate safety monitoring and emergency stop functions to ensure the safety of operators and equipment.
Ground remote control
It is mainly used for ground personnel to control vehicles in specific scenarios.

Hydraulic cylinder
Drives the lifting arm/boom to perform key actions such as lifting, luffing, telescoping and so on
Stable support system
Before operation, the outriggers extend downward and touch the ground
Horizontal & Vertical outriggers
Form a complete four-point support system to ensure the vehicle body remains level and guarantee operational accuracy and safety

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine dongfeng and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery time for a customized 65m aerial truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the FAW chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The FAW 6x4 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
