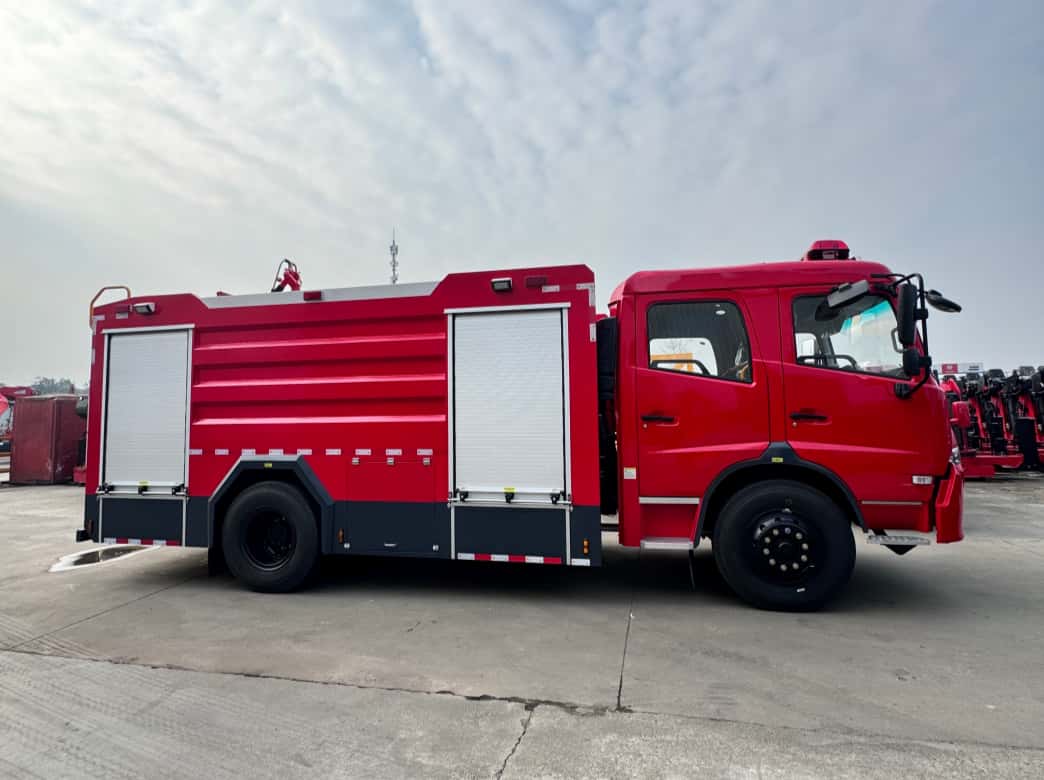

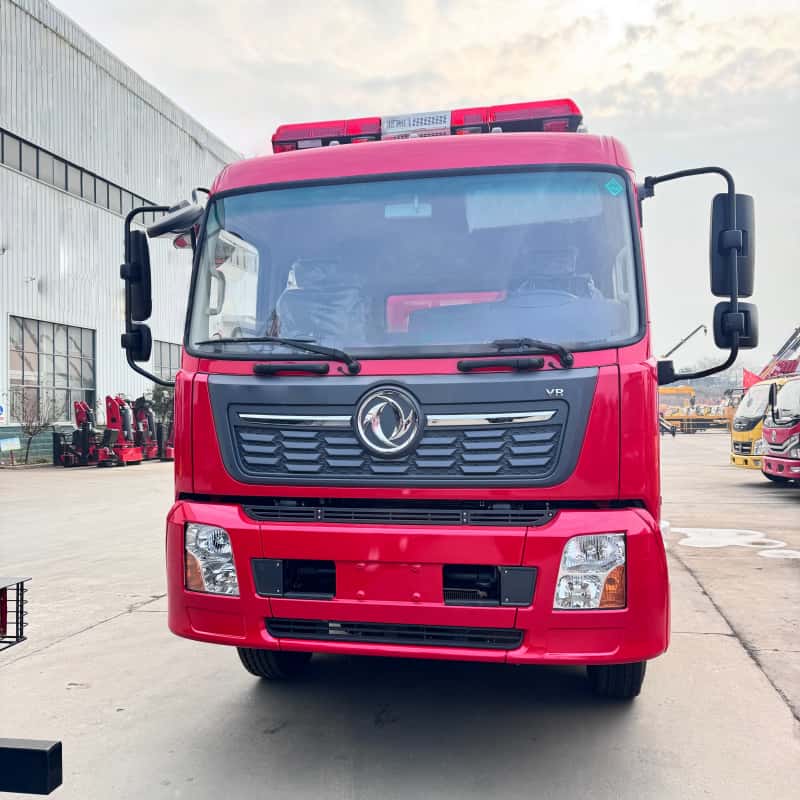

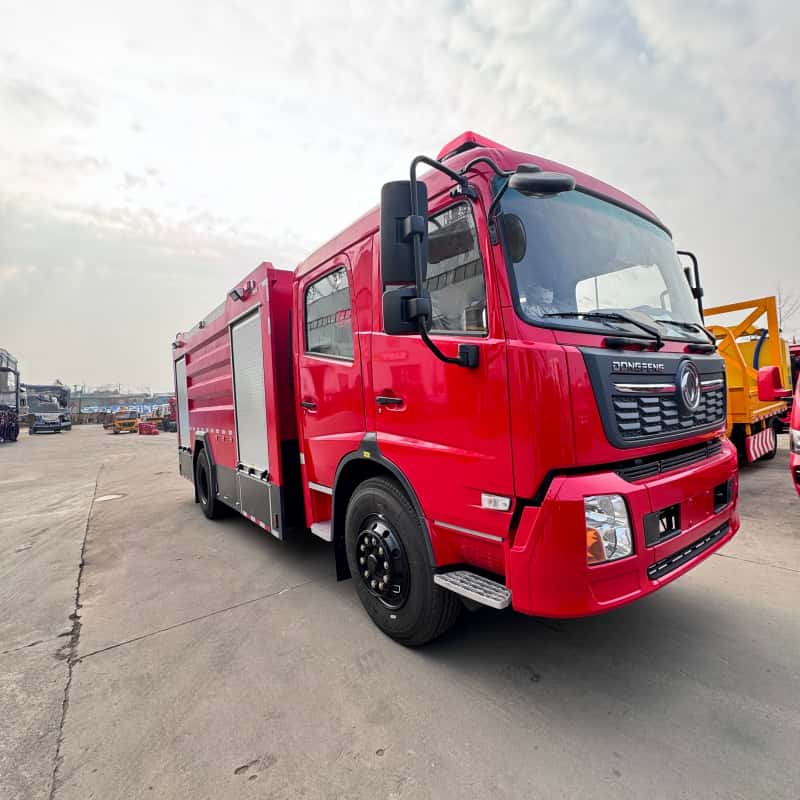

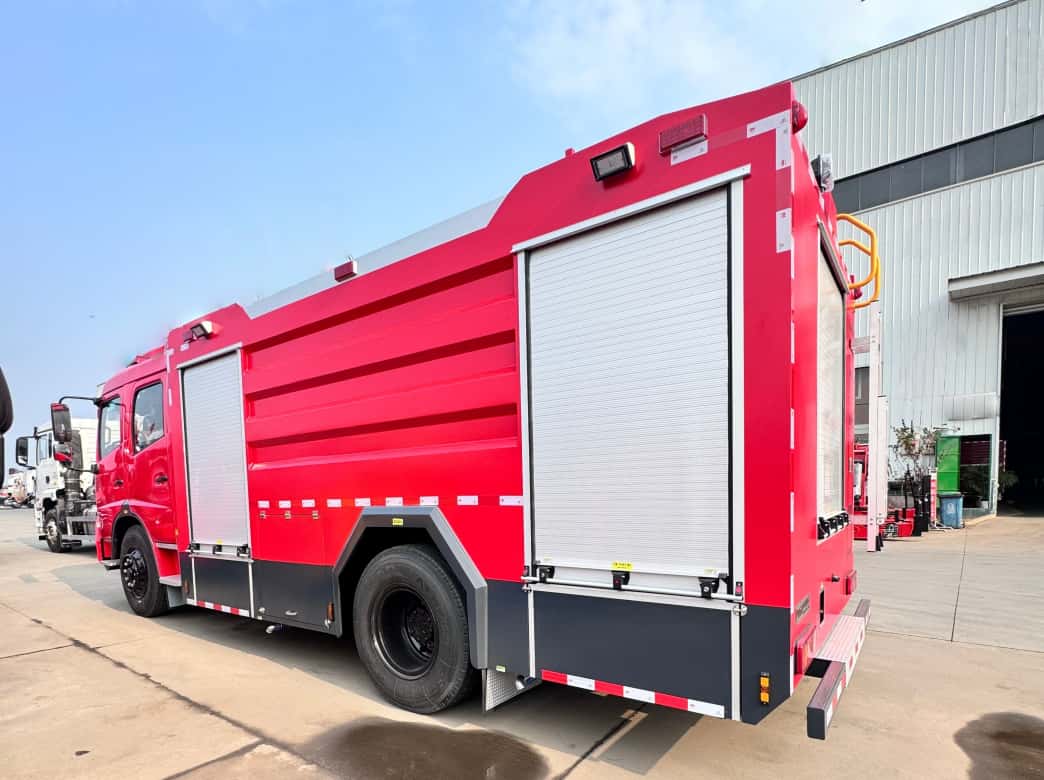

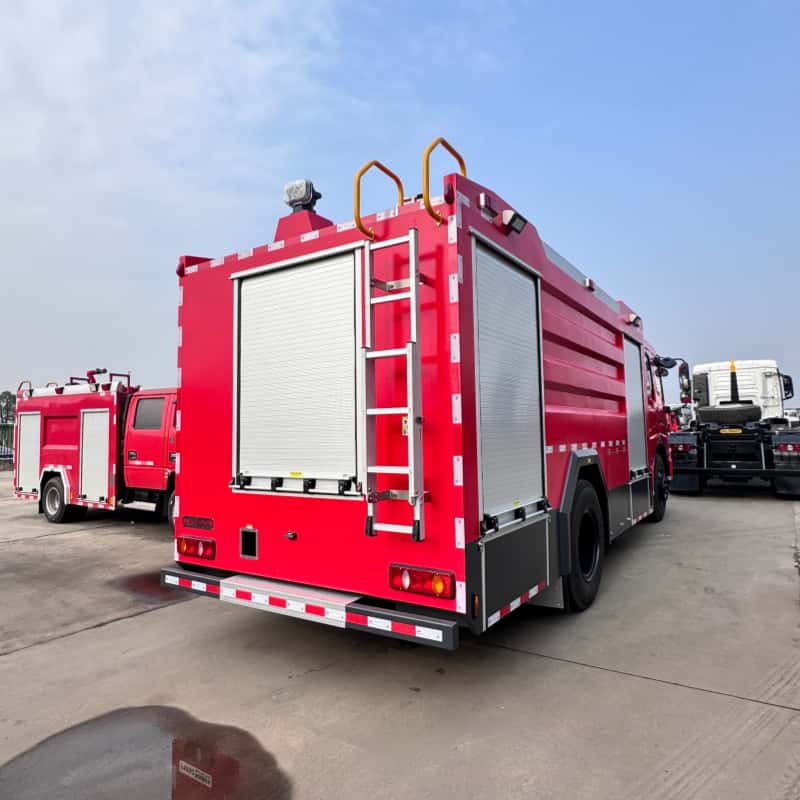

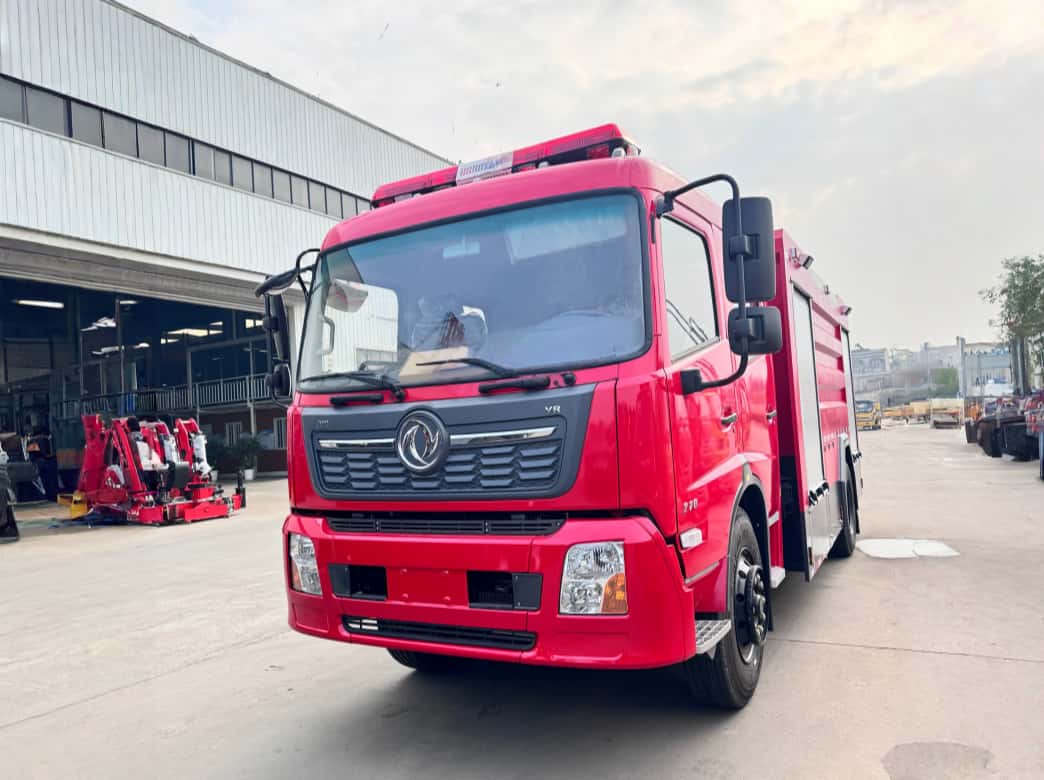

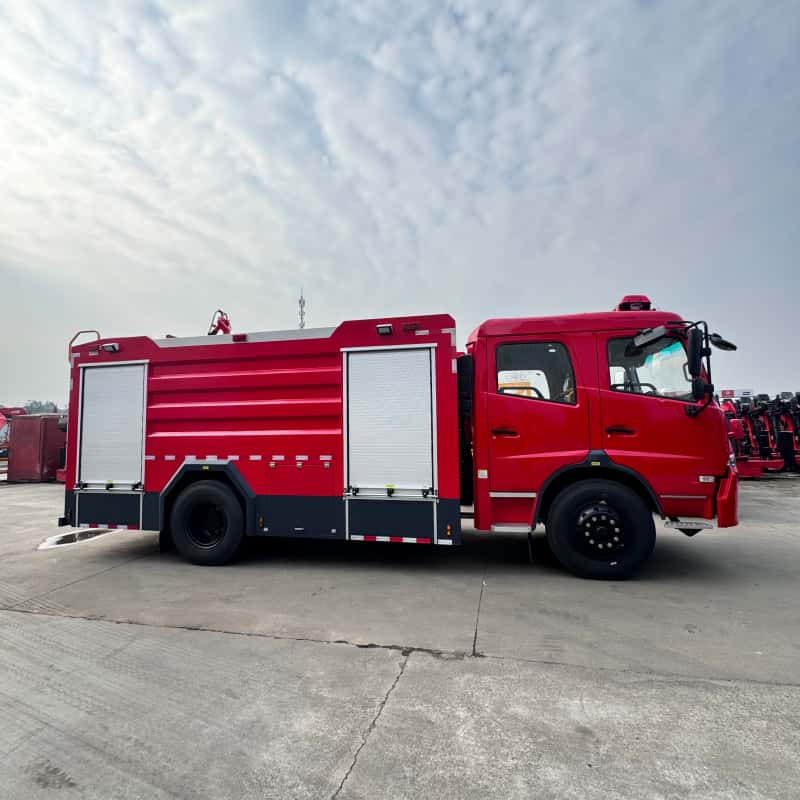

Dongfeng 12000L water tank fire truck

Name: Dongfeng 12000L water tank fire truck
Availability: InStock

Dongfeng fire trucks are built on Class II special-purpose chassis, with their upper bodies modified by Chinese refitting factories. They cover light, medium and heavy-duty models, mainly including water tank, foam, combined, and emergency rescue types. Featuring compact bodies, they are particularly suitable for rapid passage and operation on narrow urban streets.

Highlights:

✅ Range of fire monitor: 65Meters

✅ Chassis: Made in China Dongfeng chassis 4x2 (left/right hand drive available)

✅ Rotation: Fire monitor rotating 360 degrees

✅ Safety: Full vehicle warning lights + siren

Inquire Now

Dongfeng water tank fire truck is mainly used for emergency rescue and disaster relief.

Your trusted fire rescue solution

Applications

This Dongfeng water tank fire truck is mainly used for extinguishing building fires, vehicle fires, factory fires, forest/grassland fires, etc., as well as for scenarios such as wrecking and rescuing people in traffic accidents, building collapses and trapped personnel, high-altitude rescue and elevator entrapment, drainage and waterlogging relief, and forced entry by wrecking.

Fire Fighting: Vehicle and Forest Fire Fighting
Emergency rescue: dismantling and rescuing people at traffic accidents
Social emergency rescue: removing wasp nests and handling leaked hazardous chemicals
High-Altitude Rescue: Maintenance and Rescue of Power Supply Cables

Why choose our Dongfeng water tank fire truck？

Wide and flexible operating range: the water cannon has an effective range of 65 meters, and the water hoses can be connected in series to extend to 120 to 240 meters, adapting to long-distance high-altitude operations.
Compact and flexible body: it can quickly reach narrow roads and alleys, improving work efficiency.
Adequate safety protection: Reasonable layout of equipment for quick access, improving rescue efficiency
Efficient operation: The fire pumps and fire monitors feature stable performance, long range and powerful water output, significantly shortening the operation completion time.
Stable and reliable: Buffer control and imported proportional valves ensure smooth and shock-free movement as well as precise control.
Sturdy and durable: Made of high-quality carbon steel/stainless steel, it is corrosion-resistant and long-lasting, ensuring stable long-term operation of the equipment.
Professional Strengths: Complete 3C certification ensures reliable quality

Comprehensive Safety Protection

Pipelines and valves: high-quality valves, check valves, pressure relief valves to prevent water hammer and pipeline bursting.
Fire monitor locking and limiting device: The monitor head can rotate 360°, equipped with limit and locking functions to prevent out-of-control swinging from causing injury.
Operation panel: The layout of the pump room and valves is reasonable, with sufficient operating space to prevent scalding and crushing injuries.

Technical Specifications

Category	Item	Unit	Data
Vehicle Parameters	Model	/	water tank fire truck
	Overall Dimensions (L×W×H)	mm	7880×2500×3400
	Gross Weight	kg	18000
	Curb Weight	kg	10500
	Wheelbase	mm	4500
	Max Speed	km/h	90
Chassis Parameters	Chassis Brand	/	4×2
	Engine Power	kw	199
	Gearbox	/	6-speed manual
	Brake System	/	Pneumatic brake
Tank Parameters	Water Tank Capacity	L	8000
Tank Parameters	Foam Tank Capacity	L	1000
	Tank Material	/	Carbon Steel / Stainless Steel
Fire Pump	Model	/	CB10/60
	Rated Flow	L/s	60
	Rated Pressure	MPa	1.0
	Max Suction Depth	m	7
	≤35	s	≤35
Fire Monitor	Model	/	PS80
	Flow	L/s	80
	Water Jet Distance	m	65
	Foam Jet Distance	m	60
	Swing Angle	°	360

Video

Drawing

Main Components

Fire pump and outlet/piping system
The core system for fire trucks to achieve fire extinguishing and water supply
Beauty SPA & Hairdressing
Whatever you needs, CARESTONE is at your side.
Food Processing & Catering
Whatever you needs, CARESTONE is at your side.

Fire engine water tank
The water tank is made of high-quality carbon steel plates, and the interior of the tank body is treated with anti-corrosion treatment
Fire monitor
Core fire-extinguishing equipment for highly efficient suppression of large-scale fires
Fire pump
Whatever you needs, CARESTONE is at your side.

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free operation training: On-site or remote training covering operating systems, safety specifications, and equipment operation.
Global Parts Supply: Fast shipping of Dongfeng and hydraulic components to minimize downtime.

Frequently Asked Questions

Q: What is the delivery lead time for a customized Dongfeng water tank fire truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our fire engine comply with ISO and CE standards, and the Dongfeng chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The Dongfeng 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
